Marya Pharmaceutical Large Dosage Syrup Filling Production Line

Overview

Basic Info.

Model NO.	MY-CL-06
Certification	CE, GMP, ISO
Voltage	380V
Computerized	Computerized
Customized	Customized
Condition	New
Warranty	1 Year
After-sales Service	Field Installation, Commissioning and Training
Process Type	Washing Sterilizing Filling Stoppering Capping
Package Type	Glass Bottle
Machine Weight	1200 Kg
Capacity	2000-24000bph
Filling Accuracy	1%
Application	Chemical, Medical, Food
Material	304/316L Stainless Steel
Filling Machine Power	1.8kw
Function	Liquid, Powder
Suitable Size	1-50ml
Transport Package	Wooden Package
Specification	350015001800mm
Trademark	MARYA
Origin	China
HS Code	8422303090
Production Capacity	100 Unit/Year

Product Description

Pharmaceutical Injection Oral Liquid Glass Ampoule Filling Sealing Machine Production Line

Main Application

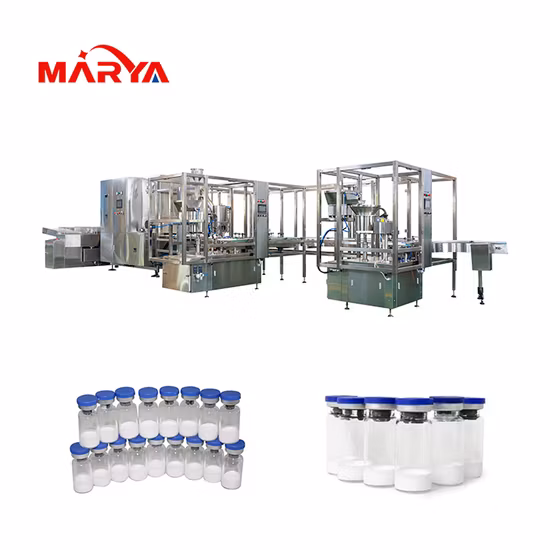

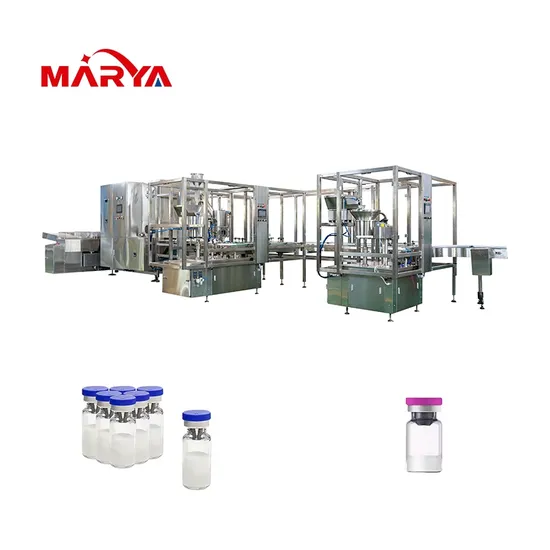

The Pharmaceutical machinery Aseptic Powder Vial Filling Machine 10-100ml production line is composed of the ultrasonic bottle washing machine, dryer sterilizer, filling and stoppering machine, and capping machine. It can complete spraying water, ultrasonic cleaning, flushing of the inner and outer wall of the bottle, preheating, drying and sterilization, heat source removing, cooling, bottle unscrambling, filling, plug unscrambling, stopper pressing, cap unscrambling, capping, and other complex functions, realizing automatic production of the whole process. Each machine can be used separately or in a linkage line, which is mainly used in the production of vial sterile powder filling.

Performance Features:

1. The whole Pharmaceutical machinery Aseptic Powder Vial Filling Machine 10-100ml line meets new GMP requirements, and the cleaning effect meets the new Pharmacopoeia standards and requirements.2. The whole line can adopt a straight-line layout to reduce the risk of drug cross-contamination and ensure asepticallylevel.3. Applicable specification: 5ml-50ml vial (as per user's requirement) for Pharmaceutical machinery Aseptic Powder Vial Filling Machine 10-100ml4.Production Capacity: 6000-30000BPH

5. Number of filling head: 1-4, to be selected according to output6. Filling Accuracy: ≤ ±1% (according to drug characteristics)7. Capping qualified rate: ≥99.9% for Pharmaceutical machinery Aseptic Powder Vial Filling Machine 10-100ml8.Compact and simple structure occupies less area;9.Stable product performance, easy and reliable operation, beautiful appearance;10.High degree of automation, fewer operators required;

11.Optional real-time display and printing system of sterilization temperature;12.The heat in the hot air circulation tunnel oven is evenly distributed, and the heat resources removal effect is good.13.Optional online sterilization function for the cooling section of hot air circulation tunnel oven.14. Various type of filling heads can be designed based on different filling volume, filling accuracy is high;15. The feeding system adopts various aseptic material transfers, which meets the GMP requirements.17. Multi-head screw intermittent filling, directly filling sterile raw materials into bottles, no secondary pollution.18.Optional open-RABS isolation protection system and class 100 laminar flow hood protection;

Product model	MY-2	MY-4	MY-6	MY-8	MY-10	MY-12	MY-16	MY-20
Suitable size(ml)	2-30(vials)
Output(pcs/min)	20-60	40-120	60-200	100-250	120-300	150-400	200-500	280-600
Filling heads	2	4	6	8	10	12	16	20
Power supply	380V 50HZ
Power capacity(KW)	79	79	90	92	108	108	115	132
Total weight(kg)	8500	8500	8800	9300	9900	10200	10800	11800
Overall diemensions(mm)	905022002450	905022002450	970022002450	970022002450	108022002450	108022002450	117022002450	117022002450
