Pharmaceutical Machinery Blister Packing Machine White Medical Absorbent Alcohol Cotton Ball Packing Machine
DPP250 Alcohol Cotton Ball Blister Packaging Machine Afford solution of tablet press machine automatic capsule filling m
Description
Basic Info.
Model NO. | DPP-250 |
Customized | Customized |
Condition | New |
Warranty | 1 Year |
Material | Stainless Steel |
Transport Package | Wooden Package |
Trademark | zion |
Origin | China |
HS Code | 8474802000 |
Production Capacity | 100sets/Month |
Product Description

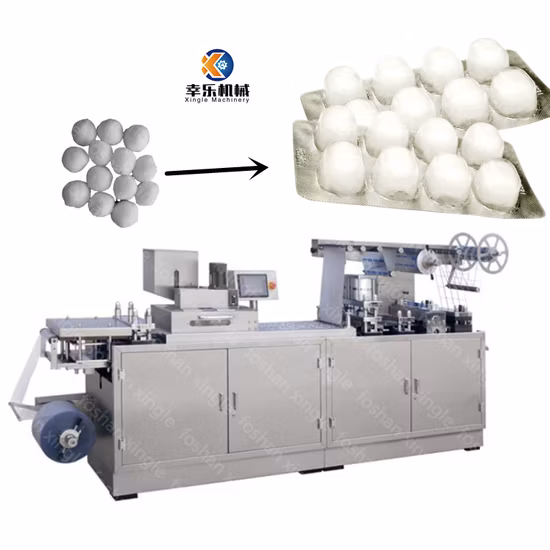

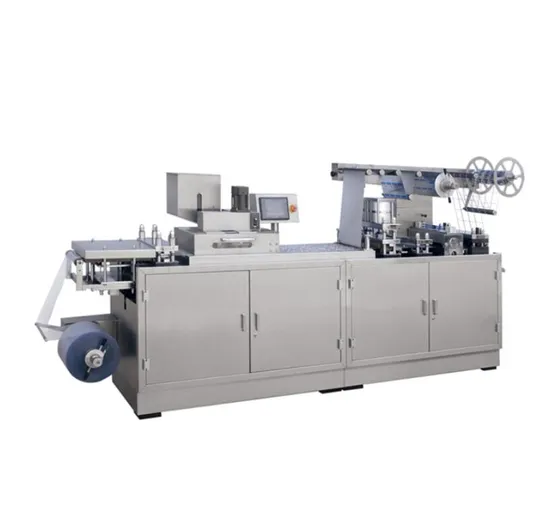

DPP250 Alcohol Cotton Ball Blister Packaging MachineAfford solution of tablet press machine automatic capsule filling machine,blister packing machine and other producing line in pharmaceutical industry
Model | DPP-250E | |||
One machine with two functions(Need to change the mold) | ALU-ALU | ALU-PVC | ||
Cutting Frequency | 15-30times/min | 20-45times/min | ||
Max. Blister Size(mm) | 250*120*12(Cold punched aluminum) | 250*120*15(PVC Hard film) | ||
Travel range(mm) | 30-120mm | |||
Plate specifications and number of tablets per plate | Designed according to user requirements | |||
Package cutting specification reelΦ75mm | Medicinal PVC hard film(mm) | (0.15~0.4)*260*(Φ400) | ||
Heat sealing PTP aluminum foil(mm) | (0.02~0.15)*260*(Φ250) | (0.02~0.15)*150*(Φ250) | ||
ALU-ALU(Cold punched aluminum)(mm) | (0.14~0.18)*260*(Φ400) | |||
Heat-sealed dialysis paper(mm) | (50-100)g/m2*260*(Φ300) | |||
Motor Power(kw) | 380V 50HV 4.5KW | 380W 50HZ 8KW | ||
Air Consumption(m3/min) | >=0.45m3/min(provide for oneself)pressure:0.6~0.8Mpa | |||
Mold cooling | Tap water/Recycled water Consumption:40-80L/h | |||
Overall Size (mm) | 2900*750*1600(Foot height included) | |||
Part size (mm) | 1500*750*1600(front) | |||
1400*750*1450(back) | ||||
Weight (Kg) | about 1200kg |
