Pharmaceutical Simple Innovative Products Latest Semi Auto Capsule Filler Capsule Making Machinery Equipment Semi Automatic Capsule Filling Machine

Overview

Basic Info.

Model NO.	SNTJ-208D
Customized	Customized
Condition	New
Warranty	1 Year
Packaging Details	Free Fumigation in Wooden Cases
Oise	≤70dB
Vacuum Pump	Evacuating Rate, 40m 3 /H
Vacuum Pump Type	Water Ring
Key Selling Points	High Productivity
Filling Accuracy(%)	99 %
Weight (Kg)	800 Kg
Marketing Type	New Product 2022
Applicable Industries	Food & Beverage Factory, Manufacturing Plant
Core Components	PLC
Video Outgoing-Inspection	Provided
Capacity (Capsule/Min)	0 - 25000
Transport Package	Standard Export Wooden Case, Optional Fumigated Wo
Specification	15007801800mm
Trademark	SINOPED
Origin	China
Production Capacity	50000/Year

Product Description

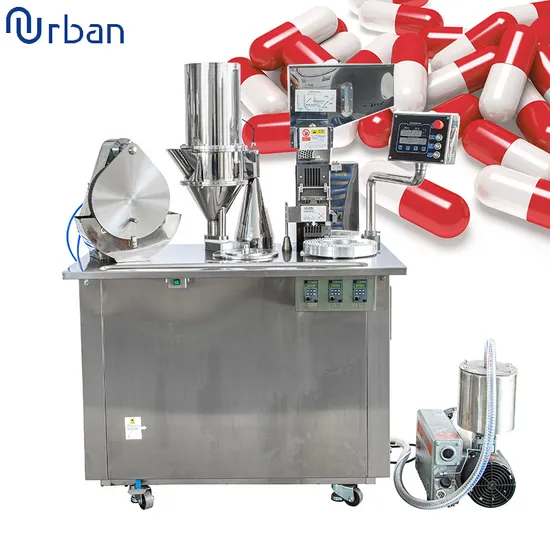

This capsule filling machine combines with electricity and pneumatic power, it is suitable for filling international all size capsule, high output and easy for operating. The whole line equips with auto counting device and adjustable feeding device, can finish position action, separate action, filling action and lock action whole operating process.It meets GMP standard. Cancel conventional gearbox transmission. The variable frequency stepless speed regulation is adopted to solve the weakness of large deviation of the weight of the head and tail of the traditional machine. Automatic emplacement, separation and shutdown are controlled by photoelectric counting, sensitive and reliable. it is the ideal capsule filling equipment in pharmaceutical industry.
* Click on me for details

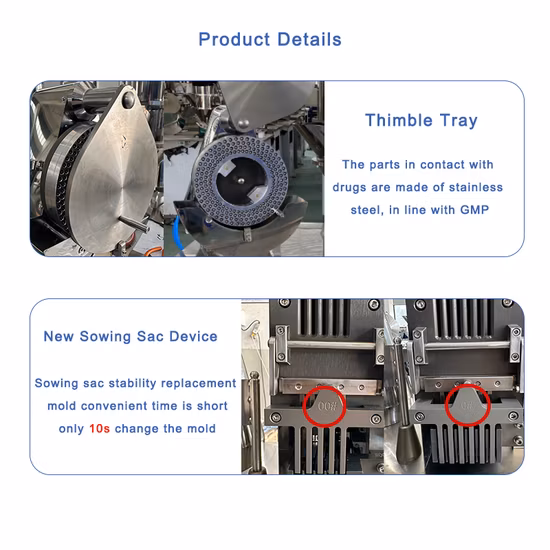

Detailed PhotosCapsule tray
The capsule is oriented and the capsule swich is positioned accurately.Filling station

Suitable for powder,granule,pellet filling,high yield.Thimble plate Both precise,needle-polished,no damage to capsules,high pass rate.
Product Parameters

Model	CGN-208D
Productivity	1-25,000 capsules/h
Applicable capsules	#000/00/0/1/2/3/4/5
Filled medicine type	Not adhensive or wet powders, and small granules
Total power	4.0KW
Air pressure	0.03m 3 /min, 0.7MPa
Vacuum pump	Evacuating rate, 40m 3 /h
Dimension(LWH)	15007801800mm
Weight	380KG
Warranty	1 year
Packaging Details	Free Fumigation in Wooden Cases
Material	304/316L Stainless Steel
Noise	≤70dB

Certifications

Pharmaceutical Simple Innovative Products Latest Semi Auto Capsule Filler Capsule Making Machinery Equipment Semi Automatic Capsule Filling Machine

rofessional we can provide sterilizers and packaging machines.Can meet your mass production.

Pharmaceutical Simple Innovative Products Latest Semi Auto Capsule Filler Capsule Making Machinery Equipment Semi Automatic Capsule Filling Machine

Why choose us
Pre-sale service

1. Support product customization, we can make special customization according to your needs.2. Before delivery, we will test the machine to ensure that it can run normally3. Provide business consultation and technical support, and provide free professional packaging solutions4. Make machine layout for customers according to their factories.

After-sales service1. Machine operation manual2. Provide installation, debugging, setting, commissioning, maintenance and other videos.3. Online communication or video communication is possible.4.We have professional overseas service engineers at your service at any time. Air tickets, visas, transportation, living and food are all customers' business.5.During the warranty period, there is no man-made damage, we will replace it for you.
